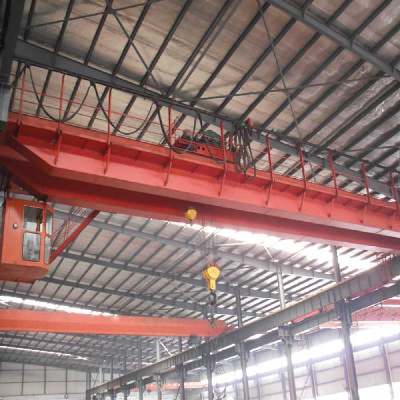

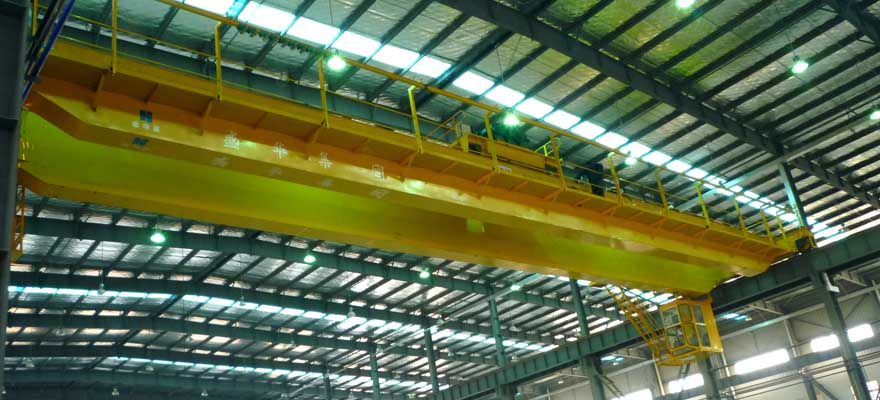

QD type double girder overhead overhead crane is mainly design for heavy duty work. Espacially for the continuous working, this type is your good choice! It's widely used for huge machine assembly, steel plant, and other heavy working need.
Product Description
1. Main beam - The main traveling structure of the crane which spans the width of the bay and travels in a direction parallel to the runway. The bridge consists of two end trucks and one or two bridge girders depending on the equipment type. The bridge also supports the trolley and hoisting mechanism for up and down lifting of load.
2. End trucks - Located on either side of the bridge, the end trucks house the wheels on which the entire crane travels. It is an assembly consisting of structural members, wheels, bearings, axles, etc., which supports the bridge girder(s) or the trolley cross member(s).
3. Bridge Girder(s) - The principal horizontal beam of the crane bridge which supports the trolley and is supported by the end trucks.
4. Runway - The rails, beams, brackets and framework on which the crane operates.
5. Runway Rail - The rail supported by the runway beams on which the crane travels.
6. Hoist - The hoist mechanism is a unit consisting of a motor drive, coupling, brakes, gearing, drum, ropes, and load block designed to raise, hold and lower the maximum rated load. Hoist mechanism is mounted to the trolley.
7. Trolley - The unit carrying the hoisting mechanism which travels on the bridge rails in a direction at right angles to the crane runway. Trolley frame is the basic structure of the trolley on which are mounted the hoisting and traversing mechanisms.
8. Bumper (Buffer) - An energy absorbing device for reducing impact when a moving crane or trolley reaches the end of its permitted travel, or when two moving cranes or trolleys come into contact. This device may be attached to the bridge, trolley or runway stop.
- Place of Origin: China
- Brand Name: Prepare a group
- Model Number: QD
- Weight: 500.000 kg
- :
- :
- :
Capacity (t) | 5 | 10 | 16/3.2 | 20/5 | 32/5 | ||||
Span (m) | 10.5-31.5 | ||||||||
Lifting height (m)
| Mian | 16 | 16 | 16 | 12 | 16 | |||
Aux. | 18 | 14 | 18 | ||||||
Speed (m/min) | Hoisting | Main hook | A5 | 12.5 | 8.5 | 7.9 | 7.2 | 7.5 | |
A6 | 15.5 | 13.3 | 13 | 9.7 | 9.5 | ||||
Aux. hook | 14.5 | 12.7 | 12.7 | ||||||
Crab travelling | 37.2 | 43.8 | 44.6 | 44.6 | 42.4 | ||||
Trolley travelling | A5 | 90.7/91.9 | 90.7/91.9/84.7 | 84.7/121.5 | 84.7/121.5 | 87.6/74.2/74.6 | |||
A6 | 115.6/116.8 | 115,6/116.8/112.5 | 87.6/101.4 | 87.6/101.4 | 101.4/101.8/86.8 | ||||
Crane rail recommended | 43kg/m | 43kg or QU70 | QU70 or 90×90 | ||||||
Power supply | 3-phase A.C.50Hz 380V |
We manufacture all models Overhead Cranes, such as:
1- LD Model Single Girder EOT Cranes, Lifting capacity from 0.5t -32tons.
2- LH Model Hoist type Double Girder EOT Cranes, Lifting capacity from 2t- 50/10tons, Work duty: M3-M4.
3- QD Model Winch type Double girder EOT Cranes, Lifting capacity from 5t -660/200/50tons, Work duty: M5- M7.
4- LB Model Explosion proof type Single girder EOT Cranes, Lifting capacity from 0.5t- 20tons.
5- YZ Model Casting type Double girder EOT Cranes, Lifting capacity from 10t -50t
6- QB Model Explosion proof type double girder EOT Cranes, Lifting capacity from 5- 75/20tons.
7- Slewing type EOT Cranes, Lifting capacity: 5 5t -20 20tons.
8- LX model suspension type single girder EOT Cranes, Lifting capacity: 1t -10tons.
9- All kinds Manual type EOT Cranes.
Different type will have differnt tons, span, working class, lifting height and weight. So please tell us more details and if you have the drawing will be better.
