- Place of Origin: China
- Brand Name: Prepare a group
- Model Number: QDY
- Weight: 650.000 kg
- :
- :
- :
- :
- :

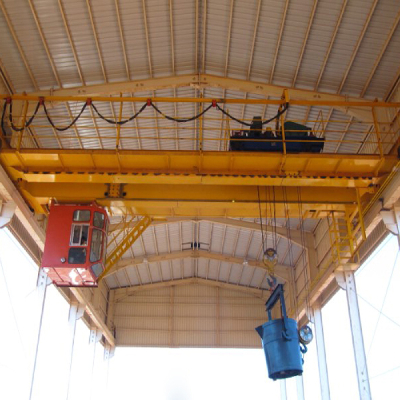

Application of Ladle lifting equipment electric casting crane for steel factory
Mainly used to lift and pour melting metal, transport red-hot solid metal in cast house, foundry shop, steel mill, etc. When lifting melting metal, the main hooks under the hanging beam hang the two ears of the steel ladle while the aux. hook sway to pour out.
Advantages of Ladle lifting equipment electric casting crane for steel factory
Reasonable structure
Favorable performance
Soft starting and stopping
Safe and reliable traveling
Low noise, commodious cabin and good view
Convenient maintenance, excellent exchangeability for parts and components
Energy saving, reduce energy consumption
Using transducer for travelling or traversing crane to realize step speed or stepless speed change
Every component & part is thoroughly scrubbed & painted with two coats of primer before assembly & two coats of synthetic enamel after testing
Crane structure: steel box type
Safety Features of Ladle lifting equipment electric casting crane for steel factory
Overloading protection
Top quality long time bearing polyurethane materials buffer
Crane traveling and cross limit switch
Voltage lower protection function, reduce energy consumption
Main lifting motor with thermal protection
Hooks with latch
Rubber buffers
Protective earthing
Sub-assembly characteristic are tested before assembly
Emergency stop system, current over-load protection system, Excellent exchangeability for parts and components.
Option - PLC Control
Option - VVVF speed
- Place of Origin: China
- Brand Name: Prepare a group
- Model Number: QDY
- Weight: 650.000 kg
- :
- :
- :
- :
- :
| Professional Foundry Crane YZ Model 100/32~125/32 Double Beam Casting Bridge Crane | |||||||
| Lifting Capacity | T | 100/32 | 125/32 | ||||
| Span | m | 19 | 22 | 25 | 19 | 22 | |
| Speed | Main Hook Lifting | m/min | 6.8 | 6.8 | 8.6 | 9.5 | 7.6 |
| Aux. Hook Lifting | 9.5 | 9.5 | 12 | 12 | 9.5 | ||
| Traveling of Trolley | 37 | 37 | 41 | 42 | 3 | ||
| Traveling of Crane | 68 | 68 | 77 | 77 | 77 | ||
| Max wheel pressure | Kn | 520 | 530 | 545 | 580 | 595 | |
| Steel track recommended | QU120 | ||||||
| Working Duty | A7 | ||||||
| Power Supply | 380V 50HZ 3-phase A.C. or according to your local requirement. | ||||||
| Professional Foundry Crane YZS Model 125/32~320/80T Four Beam Cast Bridge Crane | ||||||||||
| Lifting capacity(t) | 125/32 | 140/32 | 160/32 | 180/50 | 200/50 | 225/65 | 240/80 | 280/80 | 320/80 | |
| Working duty | A7 | |||||||||
| Span(m) | 19 | 19 | 27 | 28.5 | 28 | 27 | 22 | 22 | 24.5 | |
| Lifting height (m) | Main hook | 24 | 22 | 25 | 27 | 26 | 32 | 25 | 29 | 28 |
| Auxiliary hook | 26 | 24 | 26 | 29 | 26 | 34 | 27 | 29 | 32 | |
| Speed | Main hook | 7.6 | 7.8 | 9.8 | 7.5 | 6 | 11 | 7 | 12 | 7.5 |
| Aux. hook | 9.7 | 9.7 | 12 | 10 | 10 | 11 | 9.6 | 10 | 10 | |
| Main trolley | 38 | 36 | 43.5 | 40 | 41 | 41 | 35 | 40 | 29 | |
| aux.trolley | 39 | 37.5 | 43.5 | 38 | 38 | 39.5 | 38 | 40 | 39 | |
| crane | 76 | 73 | 84 | 80 | 78 | 84 | 80 | 80 | 58 | |
| Max wheel load(KN) | 505 | 535 | 485 | 525 | 530 | 550 | 545 | 735 | 750 | |
| Steel track recommended | QU120 | |||||||||
| Working Duty | A7 | |||||||||
| Power source | 380V 50HZ 3-phase A.C. or according to your local requirement. | |||||||||
